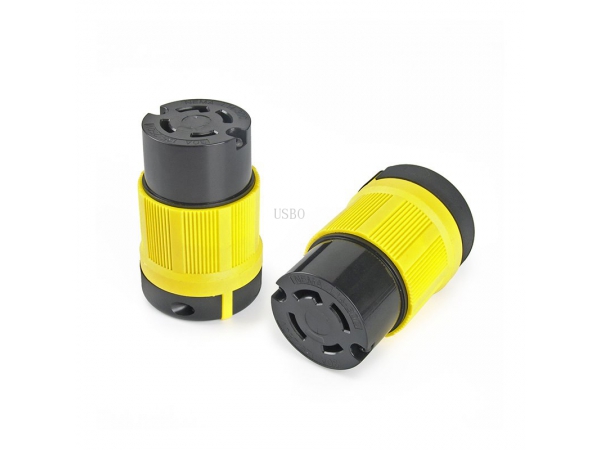

| Style | Twist Lock Female Receptacle Socket Outel |
| Rated | 30Amp |
| Color | Black;Other color pls contact us |
| Weight | 0.15kg one piece |
| Package | With sale box |
| Origin | Shenzhen china |
| Brand |
OEM / USBO |
| Model |
NEMA L14-30C |
| MOQ | 1 piece |
| Price | Contact us |
| Delivery |
Within 3 ~ 15 days |
| Payment |
T/T ;Wester Union; Paypal; Alipay |
| Supply |
100000pcs one week |
| NEMA Configuration |
NEMA L14-30C |
|---|---|
| Ampere |
30 Amp |
| Voltage |
125/250 Volt AC |
| Pole/Wire/Grounding |
3 Poles 4 Wires Grounding |
| Wiring |
G,W,X,Y. G for grounding, W for neutral, X and Y for hot |
| Suggested AWG |
#10/4, #8/4, #6/4 |
| Color |
Black or Customzied |
| Packaging |
1pc/box, 100pcs/carton |
| Certificated |
UL, cUL |
|
Rating |
30A 125V |
|
Mechanical Life |
Over 1000000 times |
|
Electrical Life |
Over 800000 times |
|
Contact Resistance |
Less 50M ohm |
|
Insulation Resistance |
Over 100M ohm |
|
Withstand Voltage |
1000V 50/60hz last for 1min |
|
Base Material |
Copper abs |
|
Ambient Temperature |
-25 -+80 Celsius |
|
Vibration |
10-55hz |
|
Operating Force |
Less 6N |
|
Wiring |
Soldering Or Screw and wire |
|
Installation Way |
Bushing mount |
|
Diamension |
NO |
|
Waterproof grade |
NO |
|
Application |
Travel ,Consumer electronics ,Beauty equipment, small boats, lighting, medical equipment, communications and networking equipment, instrumentation . |
* Type: NEMA L14-30C Flush Mounted Locking Receptacle
* Using: France, Belgium, Poland, Slovakia and Czechia some other countries and regions
* Housing Material: Copper & PC
* Conductor material: Copper
* Package:Bulk Package
